Designed for strength and stability. Our aluminum roof riggers are the toughest and most versatile portable roof anchorages available for window cleaners, exterior building maintenance professionals and contractors of related trades. The design is compact and disassembles for easy management. Please note: the lower brace can be raised so that the rig can clear roof obstructions such as pipes, skylights, etc. This does not effect the performance of the rig.
Features
- Portable, versatile
- Tie Back Hook Up
- Front and Rear lever operated wheel brakes.
- 13" diameter Pneumatic Rubber tires
- Lower brace can be raised to clear obstacles.
Specifications

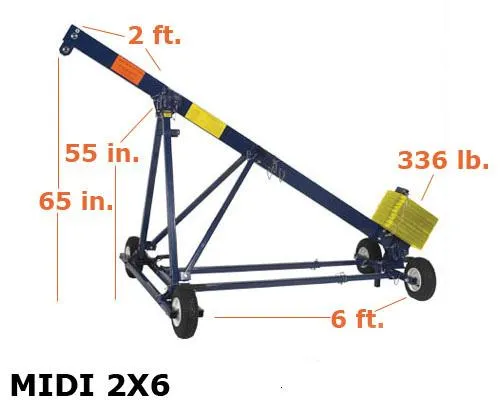

- Outreach: 2 ft.
- Maximum working load with tools: 300 lbs.
- Unit weight: 150 lbs.
- Counterweight: 336 lb (8x42)
- Counterbalance safety factor: 4:1.
- Length from front wheels to rear wheels is 6 ft.
- Inside parapet wall clearance at shoulder is 55 in.
- Distance from roof to anchor point: 65 in.
- Tested Static Load (CAL OSHA): 1000lbs.
- Meets ANSI/IWCA I-14 Standard
